Prepare Charcoal Agar Media with the MediaClave

In microbiology laboratories, consistent culture media preparation is essential for obtaining reliable test results. Charcoal agar media are used for the cultivation and isolation of fastidious microorganisms, including Bordetella pertussis and Haemophilus influenzae, among others. Preparing these media consistently requires accurate sterilization, mixing, and temperature control, while traditional preparation methods can be labor-intensive and introduce variability between batches.

The INTEGRA MediaClave automates the media preparation process, allowing laboratories to prepare charcoal agar with greater consistency, improved efficiency, and minimal manual intervention. Designed for microbiology, research, clinical, food, environmental, and quality control laboratories, the MediaClave streamlines media preparation from mixing and sterilization through cooling and dispensing.


What Is Charcoal Agar Media?

Charcoal agar is a specialized microbiological culture medium containing activated charcoal and is used for the cultivation and isolation of sensitive or fastidious microorganisms. Charcoal-containing media are used in applications where inhibitory substances can interfere with microbial growth, making controlled preparation particularly important for achieving consistent results.

Charcoal Agar is used, among other applications, for the cultivation and isolation of Bordetella pertussis and Haemophilus influenzae.

Because the preparation of charcoal agar can involve high-viscosity media, effective mixing is especially important. Standardized preparation methods can help minimize operator variability and provide more consistent processing from batch to batch.


Challenges of Manual Charcoal Agar Preparation

Preparing charcoal agar manually often involves multiple separate steps:

  • Weighing and dissolving media components
  • Sterilizing the medium
  • Maintaining homogeneous mixing
  • Cooling to the correct dispensing temperature
  • Dispensing into bottles, flasks, or Petri dishes

For high-viscosity Charcoal Agar, achieving effective and consistent mixing can be particularly challenging. Manual preparation also requires multiple handling steps, which can increase workload and introduce variability between batches.

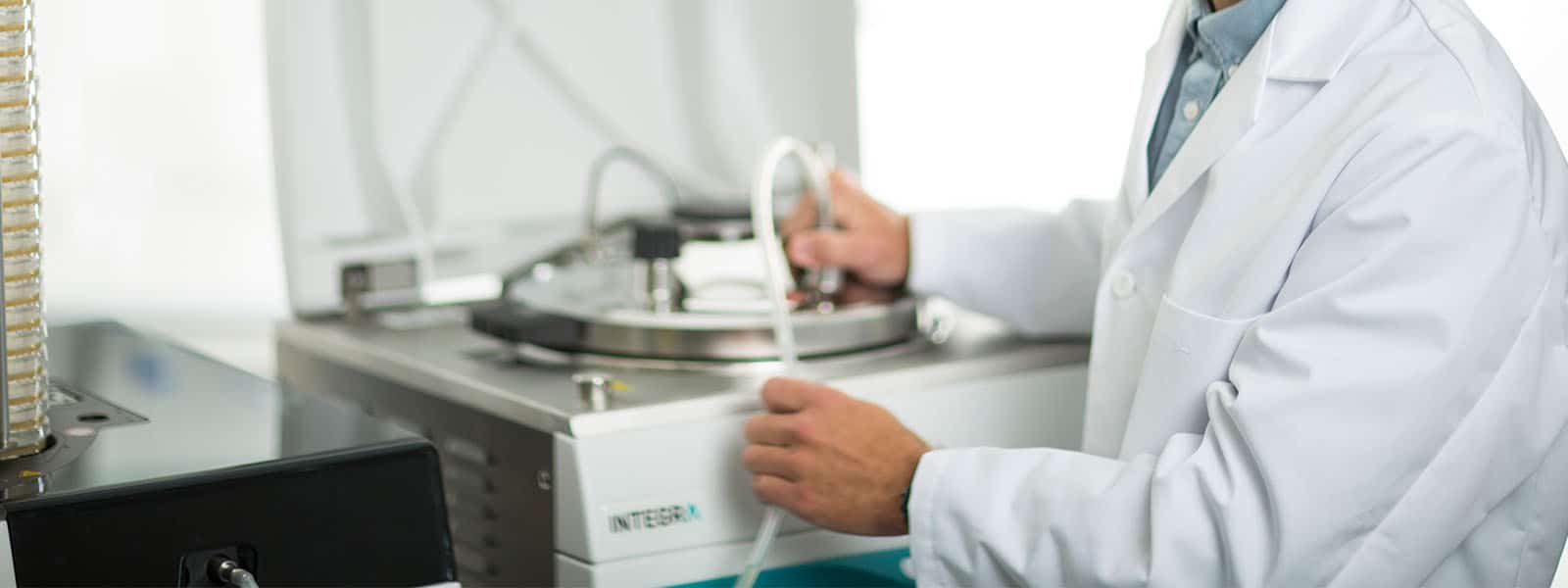

INTEGRA MediaClave for automated Charcoal Agar preparation

Why Prepare Charcoal Agar with the MediaClave?

The INTEGRA MediaClave combines media preparation, sterilization, mixing, and cooling into a single controlled workflow. When equipped with a paddle stirrer, the system is designed to handle high-viscosity Charcoal Agar effectively without the need for pre-swelling.

The paddle stirrer improves mixing performance while helping to minimize foaming during preparation. It can also reduce Charcoal Agar preparation time by more than 30%, helping laboratories streamline media preparation and reduce manual processing time.


Key advantages include:

Improved Mixing Performance

The paddle stirrer provides effective mixing of high-viscosity Charcoal Agar, helping maintain a homogeneous medium throughout preparation. The system can prepare high-viscosity Charcoal Agar without the need for pre-swelling, simplifying the preparation process.

Minimized Foaming

The paddle stirrer is designed to provide effective mixing while minimizing foaming. This can help maintain a more controlled preparation process, particularly when working with higher-viscosity media.

Shorter Preparation Time

Using the MediaClave with a paddle stirrer can reduce Charcoal Agar preparation time by more than 30%. This allows laboratories to process media more efficiently while reducing the time required for manual preparation.

Reduced Manual Work

By automating key preparation steps, including mixing, sterilization, and cooling, the MediaClave reduces the amount of manual intervention required. Laboratory staff can spend less time preparing media and more time on other laboratory activities.

Controlled Heating and Cooling

The MediaClave provides controlled temperature management throughout the preparation process. An integrated plate heat exchanger supports rapid cooling of the prepared medium to the desired dispensing temperature, helping provide a consistent workflow.

Reliable Process Control

A Pt1000 temperature probe monitors temperature during the process, while the MediaClave’s control system manages the defined preparation and sterilization parameters. This supports consistent and reproducible media preparation.

Improved Laboratory Safety

Multiple pressure and temperature monitoring systems, together with safety features such as an overpressure safety valve and burst disc, help support safe operation throughout the preparation cycle.



Seamless Media Dispensing

Once charcoal agar has been prepared, the MediaClave can be integrated with downstream dispensing solutions. Laboratories can connect the system with the MEDIAJET automated Petri dish filler for automated plate production or use the DOSE IT peristaltic pump for dispensing media into bottles, flasks, tubes, or other containers.

This allows laboratories to create a streamlined workflow from media preparation through final dispensing.

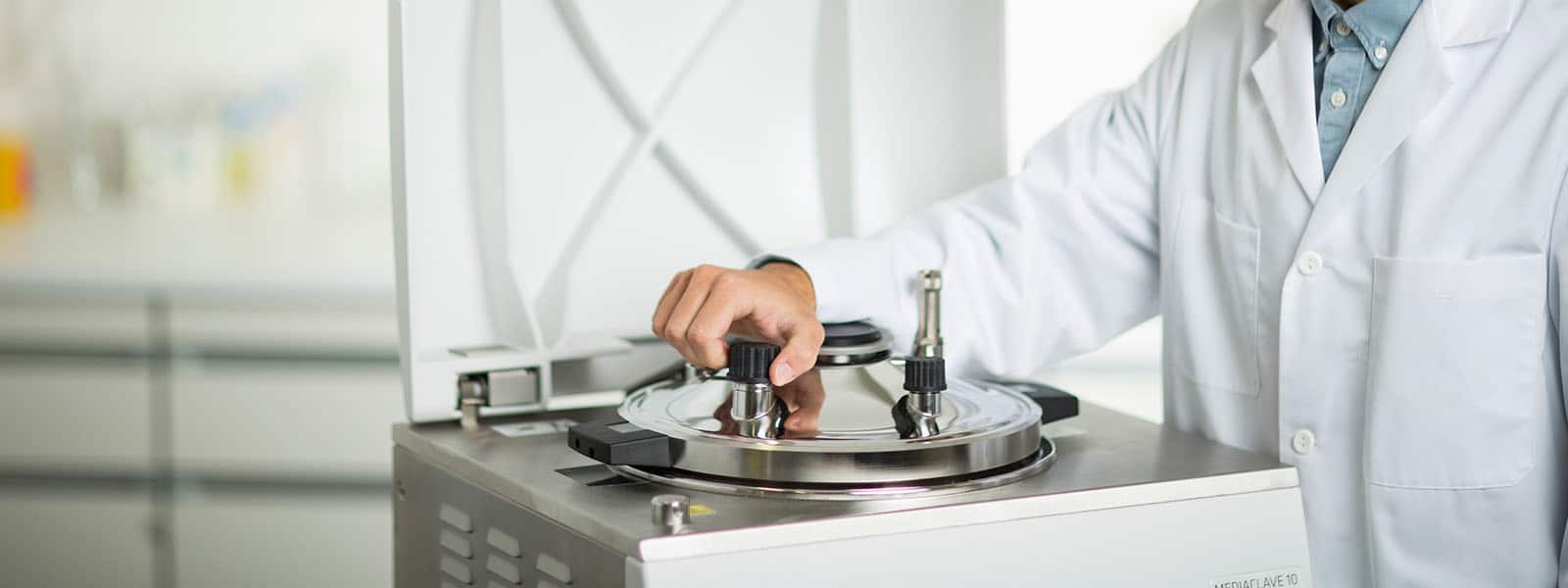

INTEGRA MediaClave media preparation and dispensing workflow

Designed for Modern Microbiology Laboratories

Whether producing routine culture media or specialized formulations such as charcoal agar, laboratories can benefit from standardized workflows that improve consistency while reducing manual work.

Available in MediaClave 10 and MediaClave 30 configurations, the system provides scalable media preparation for laboratories with different production requirements. Automated process control and documentation can also support consistent preparation and laboratory quality procedures.



Conclusion

Preparing charcoal agar does not need to be a time-consuming manual process. With the appropriate paddle stirrer, the INTEGRA MediaClave can prepare high-viscosity Charcoal Agar without pre-swelling, while improving mixing performance, minimizing foaming, and reducing preparation time by more than 30%.

By combining controlled media preparation, sterilization, mixing, and cooling in one system, the MediaClave helps laboratories reduce manual work and standardize their culture media preparation workflow.

For microbiology laboratories preparing Charcoal Agar for the cultivation and isolation of organisms such as Bordetella pertussis and Haemophilus influenzae, the MediaClave provides a controlled and efficient approach to media preparation.
